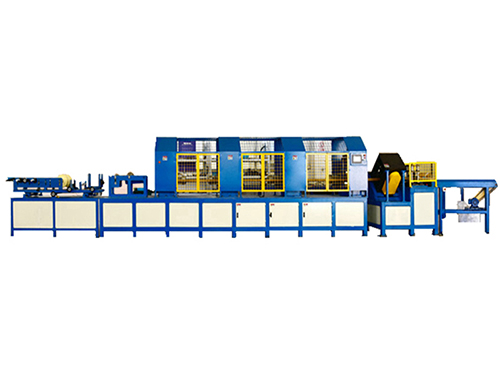

纸护角机 Paper Angle protector machine
| 技术参数 | |
| 纸护角规格 | 边长25-120（等边及不等边） |
| 生产速度 | 0-30m/min |
| 主机功率 | 7.5kw |
| 控制系统 | PLC和伺服控制 |
| 速度控制 | 变频控制 |
| 原材料 | 面纸 牛卡150g-200g |
| 芯纸 砂管纸300g-420g | |
| 切割方式 | 液压切割、伺服跟踪切断或飞剪系统 |
| 操作人数 | 1-2人 |
| PLC | 台达 |
| 触控屏 | 台达 |
| 断路器 | 正泰 |
| 信号元件 | 飞凌 |
| 生产线外形尺寸 | 26000×1350×1880mm |
| 生产线毛重 | 6吨 |
| Technical parameter | |
| Paper Angle protector specifications | Length 25-120mm(Equilateral or unequal) |
| Production speed | 0-30m/min |
| The host power | 7.5kw |
| The control system | PLC and servo motor control |
| Speed control | Frequency control |
| The raw materials | The surface of the paper 150g-200g |
| The core of paper 300g-420g | |
| Cutting way | Hydraulic cutting, servo tracking cut or flying shear system |
| The number of operations | 1-2 person |
| PLC | DELTA |
| Touching screen | DELTA |
| The circuit breaker | CHNT |
| Signal components | FEILIN |
| Production line size | 26000×1350×1880mm |
| Production line weight | 6000KG |
